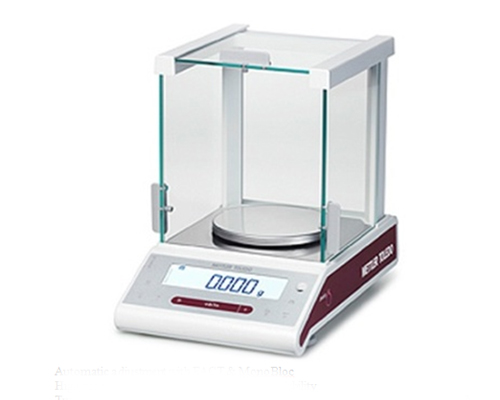

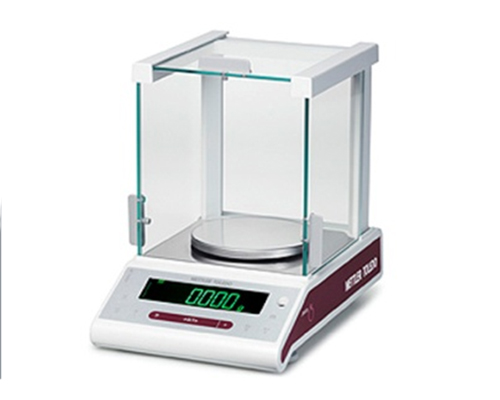

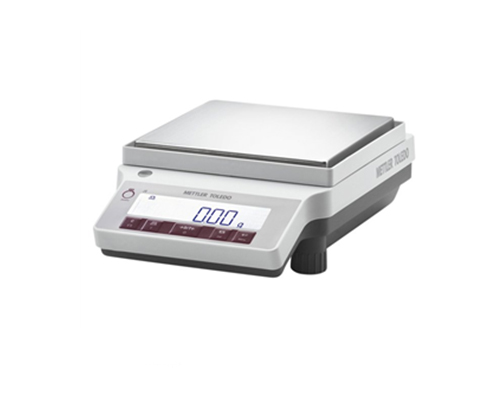

JP Jewelry Plus Automatic adjustment with FACT & MonoBloc High contrast HCD display for maximum readability Two RS232 interfaces Built in density determination software Compact and portable with built-in batteries

JS Jewelry Standard Manual one keypress adjustment, with built in internal weight Legible, backlit display RS232 interface Compact and portable with built-in batteries

JE Jewelry Entry One key press adjustment Large backlit LCD screen Robust metal base Connects to PC, printer or second display

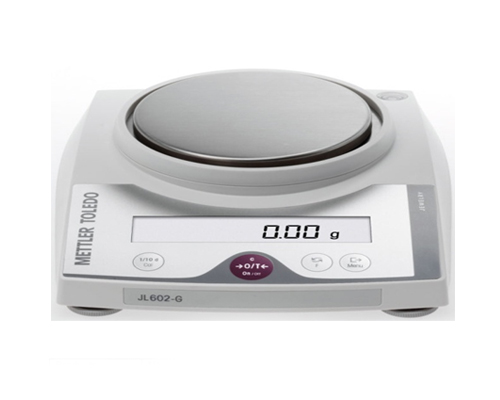

JL Jewel Light External calibration LCD display Compact footprint Portable with built in batteries

PRODUCTS	MAXIMUM CAPACITY	READABILITY	CALIBRATION	INTERFACES
JP2002G	2200 g	0.01 g	FACT	2 x RS232
JL1502-G/01	1510 g	0.01 g	Ext. Cal	RS232
JP2002G	3200 g	0.01 g	FACT	2 x RS232

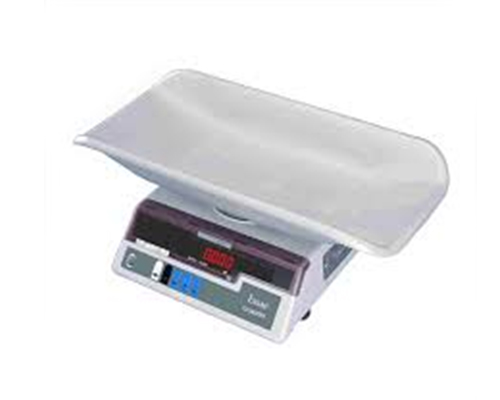

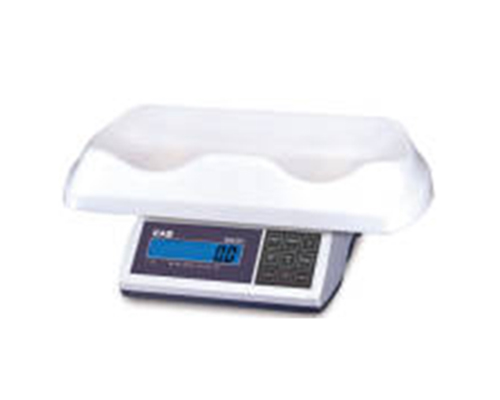

CAS ED Neonatal Digital Baby Scale CAS ED-Neonatal Digital Baby Scales are an extremely high resolution scale with various functions. This sophisticated Digital Baby Scale has a RS-232C interface which allows it to be connected to a PC or Printer. Ideal for accurately tracking low-weight new born progress.

Features

• High Accuracy
• AC & Rechargeable Battery Operated
• Functions: On/Off, Zero, Tare, Hold, Weighing, Counting, Percentage, Limit/Comparison (HI/OK/LOW), Unit Conversion, Cumulative
• Zero, Net, Stable, Low Battery indicator
• RS-232C Interface (PC/Printer Connection)
• Large LCD display (blue backlight)
• Large Baby tray
• Soft Large Rubber Tack Switch
• Dust & Splash-proof cover

Options

• 12V DC adapter

Specifications

MODEL	ED NEONATAL SERIES
Max. Capacity (kg)	3 6 15 30
Readability (g)	0.1 0.2 0.5 1
External Resolution	1/3,000
Display Digit	6
Display Type	LCD (blue backlight)
Operating Temp	0°C ~ 40°C
Power	Rechargeable Battery, AC Adapter (2V 800mA)
Battery Life	80hrs continuous use with 12hrs recharge time

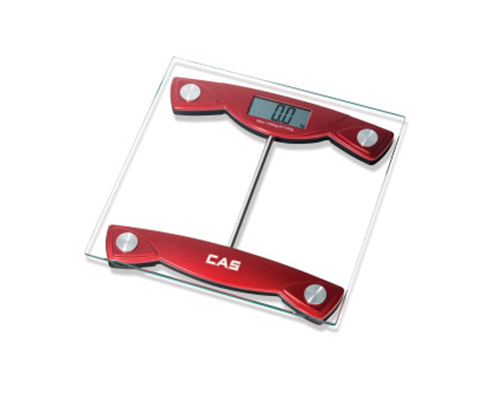

CAS HE-18 Bathroom Scale Quality digital personal bathroom scale with LCD display. Battery operated. Capacity : 150kg x 100g

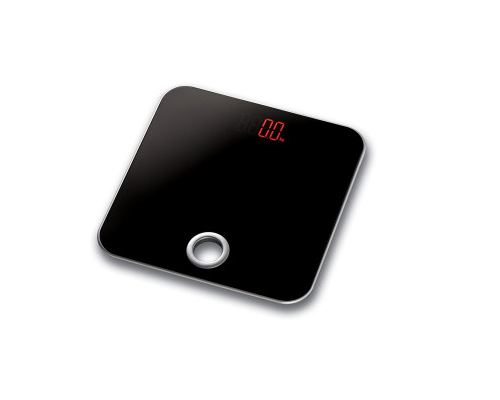

CAS HE-30 Personal Scale The CAS HE-30 Digital Personal Scales are a combination of style and technology, ideal for use in a medical practitioners office or at home as a personal scale. The CAS HE-30 is battery operated and is capable of calibration.

Specifications

• Capacity : 180kg x 100g
• Display : LED (30mm)
• Product Materials : 6mm safety glass platform, ASB Plastic
• Power Supply : 4 x AAA Battery (1.5V)

Features

• High Accuracy strain gauge load cell
• Automatic 'Start' sensor
• Automatic 'Off' function
• Overload error message
• Low battery indicator

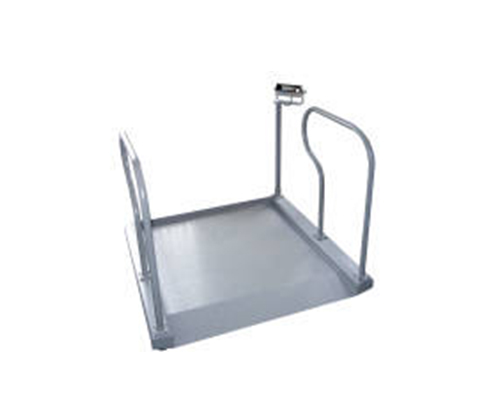

CAS WCS Wheelchair Scale CAS WCS Wheelchair Scale ensures that the patient remains safe in their chair while being weighed. This Wheelchair Scale is a very robust and stable design. Having a low profile and access ramp makes it easy to wheel or walk on and off. Patients are weighed very accurately either while in a wheelchair or even standing holding onto the solid handrails. This simple procedure safeguards both health care personnel and patient from potential injury. Using a wheelchair scale may also protect your practice from liability claims. Ideal for the Physician's Office, hospitals, Ambulatory Care Centers, Skilled Nursing, Health Related Facilities and Group Practice Centers.

Features

• Extremely robust and stable
• Support Handrails
• Easy to operate
• Tare function
• kg/lb switchable
• 6 Digit 13mm LCD/LED Display
• Low profile platform with ramp
• RS-232  Interface (PC or Printer connection)
• Platform Size: 1m x 1m

Options

• Printing Function
• LED or LCD display

Specifications

MODEL	WCS
Max. Capacity (kg)	200 300 400
Readability (g)	100 100 200
Display Type	LED or LCD
Power	AC 220V
Platform Size (mm)	1,000(W) x 1,000(D)
Product Size (mm)	1,200(W) x 1,200(D) x 970(H)

BS-250 BABY SCALE Weigh your baby's future to good health. The ideal scale for weighing newborn and infants. Capacity 15kg Rechargeable battery Elegant tray

CAS BW Capacity - Resolution : 150 kg X 20 g Application This machine is exclusively designed for Marine Industries.It can be washed down.The load cells are IP 65.

Features

• Environmentally sealed for IP 65 standards
• Tilt (90˚) and swivel (360˚) head
• Battery(Alkaline or optional rechargeable battery)
•  Low battery indication with fast recharging feature
•  Counting function
•  Check weighing function (Low/ Ok/ High)
•  On/ Off, Zero/ Mode, Tare, Net/ Gross
•  Easy-to-read, 23.5mm(15/16inch)
•  Full, Single pass, Automatic span adjustment
•  Auto zero tracking

CAS DB-II Digital Weighing Scale CAS DB-II Industrial weighing scale with large platform. Weighing & Basic Counting function. Additional features such as Tare, Percentage, Cumulative Weight Sum mode and weight & count preset range (HI/OK/LO). RS-232C Interface for optional label or ticket printer connection. Pivot & Tilting indicator. DB-II range comes different base sizes depending on the capacity. Both LCD & VFD display types available. Like most floor scales the DB-II is designed for rough industrial conditions such as logistics, food processing and also chemical plants.

Features

• Large weighing platform
• Tilt (90°) and swivel (360°) indicator
• RS-232C interface ( PC, Printer connection)
• LCD or VFD display
• Trade Approved

Functions : Weighing, Counting, Tare, Percentage, Cumulative Weight Sum, Weight & Counting preset range (HI/OK/LO)

Options

• Dust & Splash-proof Cover
• Wall-mount type
• Backlight (LCD type)
• Printer: DEP-50 (ticket) / DLP-50 (label)

Specifications

MODEL	DB - II	DB - IIF
Max. Capacity (kg)	30 60 150 60 150
Readability (g)	10 20 50 10/20 20/50
External Resolution	1/3,000 ~ 1/7,500
Display Digit	6 digits
Display Type	LCD	VFD
Operating Temp.	-10°C ~ 40°C
Power	DC 12V Adapter, 6V Rechargeable Battery	AC 110/220V, 50/60Hz
Platter Size (mm)	280(W) x 280(D)	420(W) x 510(D)
Dimensions (mm)	280(W) x 350(D) x 530(H)	425(W) x 675(D) x 755(H)
Product Weight (kg)	5.8 14.7 23

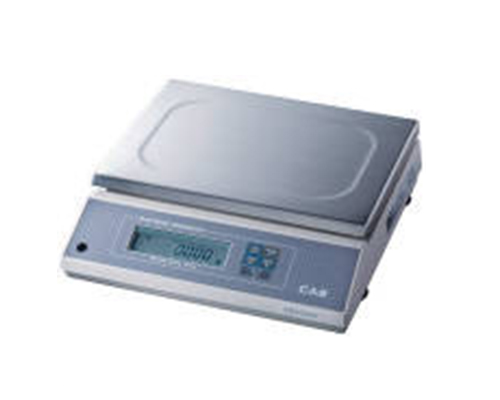

CAS ECB Digital Counting Scale CAS ECB Digital Counting Scale is easy to use and very accurate with a high internal resolution of 1/600,000. Large weighing platform for heavier & bulky items. Individually store up to 124 item's Unit Weight for a speedy operation (24 direct keys and 100 indirect). By using the Accumulation function, users can sum up the total weight and quantity of multiple items. LCD pivot & tilting indicator. The ECB also is compatible with barcode label printers via RS-232C interface. The rechargeable battery provides portability and allows the ECB to be used in environments where there are no power outlets. Ideal within warehousing, manufacturing, packaging, and other industrial environments that require counting large items.

Features

• Large weighing platform
• 124 Items memory (Unit weight/Tare/Item No./Address): 24 Direct & 100 Indirect
• High internal resolution (1/600,000)
• External resolution (1/15,000)
• Weight / Count preset range function with alarm beeps (HI/LO)
• LCD display with blue backlight
• AC & Rechargeable battery operation (AC adapter included)
• RS-232C interface
• Pivot & Tilting Indicator
• Accumulation mode
• Auto power-off function
• Label printing capable

Options

• Printer: DEP-50 (ticket) / DLP-50 (label)

Specifications

MODEL	ECB SERIES
Max. Capacity (kg)	30 75 150 250
Readability (g)	2 5 10 20
External Resolution	1/5,000 | 1/12,500
Display Digit	6/6/6 (weight/unit weight/count)
Display Type	LCD (blue backlight)
Operating Temp	0°C ~ 40°C
Power	AC adapter DC 12V/850mA, Rechargeable battery (6V, 5Ah)
Platter Size (mm)	400(W) x 500(D)
Dimensions (mm)	500(W) x 720(D) x 760(H)
Product Weight (Kg)	16.5



CAS CBL Precision Balance CAS CBL Precision Balances are sophisticated balances with high stability, durability and provide speedy results. Analog display. Sensitivity calibration mode. Unit conversion - 14 different unit/modes including counting, percentage, caret, kg, g, & oz. Optional RS-232C Interface for PC or printer.

Features

• Unit/Mode: g, kg, ct. pcs, %, oz, ozt, dwt, GN, Hong-kong tail, Singapore tail, Taiwan tail, Maraysia tail, and Japanese "monme"
• Accurate performance and strong durability Analog bar graph display

Options

• Windshield
• RS-232C interface
• Printer

Specifications

CBL SERIES
MODEL	MAX.CAPACITY (g)	READABILITY (mg)	PAN SIZE (mm)
CBL220H*	220	1	100(W) x 100(D)
CBL320H*	320	1	100(W) x 100(D)
CBL220H	2,200	10	164(W) x 124(D)
CBL320H	3,200	10	164(W) x 124(D)

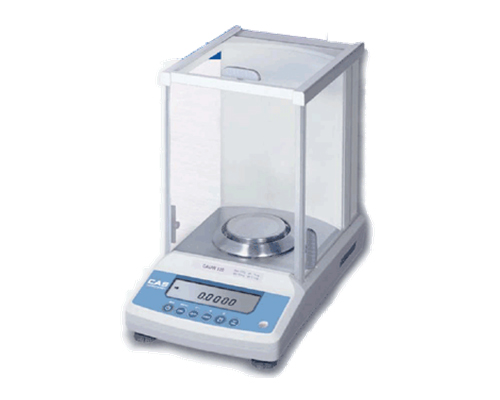

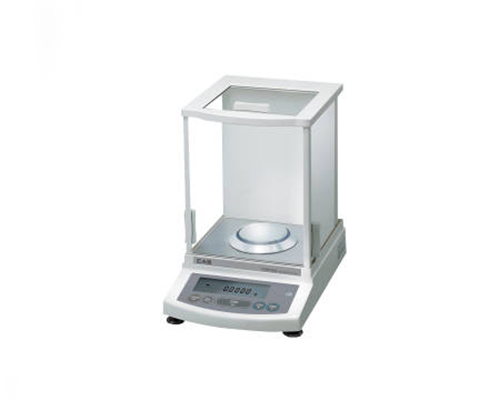

CAS CA Analytical Balance CAS CA Analytical Balances are sophisticated balances with high stability, durability and provide speedy results. These Lab balances are equipped with a monolithic sensor, allowing the balances to be used in various environments.

Features

• Built-in clock (CAW, CAY)
• Analog bar graph display
• Motor-driven calibration weight (CAW, CAX)
• Fully-automatic calibration: PCS (CAW)
• Clock-calibration (CAW)
• Full digital control method
• Windows direct function
• Anti-vibration
• Ready for specific gravity measurements
• Doors open wide in 3 directions
• Piece counting function
• RS-232C interface
• Unit conversion

Options

• Specific gravity measurement kit
• Charging battery pack

Specifications

CA SERIES
MODEL	MAX.CAPACITY (g)	READABILITY (mg)	PAN SIZE (mm)
CAW	120	0.1	80
CAW	220	0.1	80
CAW	320	0.1	80
CAX	120	0.1	80
CAX	200	0.1	80
CAY	120	0.1	80
CAY	220	0.1	80



CA SERIES
MODEL	PSC (Calibrate)	Internal (Calibrate)	CLOCK CAL	Analog Bar Graph	Windows Direct	Piece Counting	Specific Gravity
CAW
CAX	-		-
CAY	-	-	-

CAS CAU Analytical Balance Series CAS CAU Analytical Balances are sophisticated balances with high stability, durability and provide speedy results. These Lab balances are equipped with a monolithic sensor, allowing the balances to be used in various environments.

Features

• Dual-range (CAUW-D)
• Excellent repeatability and zero-return
• Backlight/Clock-CAL (CAUW)
• Easy level adjustment
• Pouring mode / Formulation mode
• Date output style optional
• Windows Direct
• Perfect self calibration (CAUW, CAUX)

Options

• Specific gravity measurement kit
• Ionizer (Static remover "Stable-ex")
• Charging battery pack

Specifications

CAU SERIES
MODEL	MAX.CAPACITY (g)	READABILITY (mg)	PAN SIZE (mm)
CAUW-D	220/82	0.1/0.01	80
CAUW-D	120/42	0.1/0.01	80
CAUW	320, 220, 120	0.1	80
CAUX	320, 220, 120	0.1	80
CAUY	220, 120	0.1	80



CA SERIES
MODEL	PSC (Calibrate)	Internal (Calibrate)	CLOCK CAL	Analog Bar Graph	Windows Direct	Interval timer	Piece Counting	Specific Gravity	Back Light
CAUW-D									-
CAUW
CAUX			-						-
CAUY	-	-	-			-			-

CAS CBX Precision Balance Laboratory Balance with analog bar graph display indicating total weight (and tare) as portion of the balance capacity. Various weighing modes. Set upper and lower limits with checkweighing function. RS-232C Interface for PC or printer. Max Capacity : 12 ~ 32kg

Features

• Calibration report
• Windows direct
• Check weighing (HI/OK/LO)
• Counting function
• Built-in RS-232C interface

Options

• Specific gravity measurement kit
• Charging battery pack

Specifications

MODEL	MAX.CAPACITY (g)	READABILITY (mg)	PAN SIZE (mm)
CBX12KH	12	0.1	345(W) x 250(D)
CBX22KH	22	0.1	345(W) x 250(D)
CBX32KH	32	0.1	345(W) x 250(D)

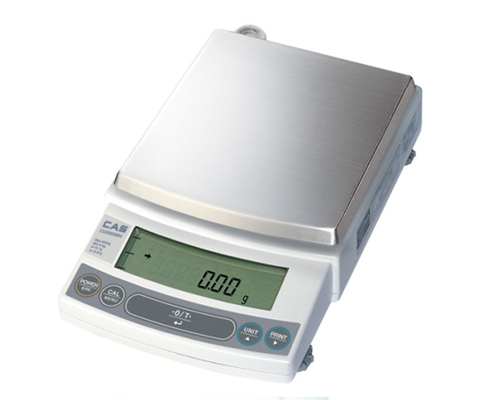

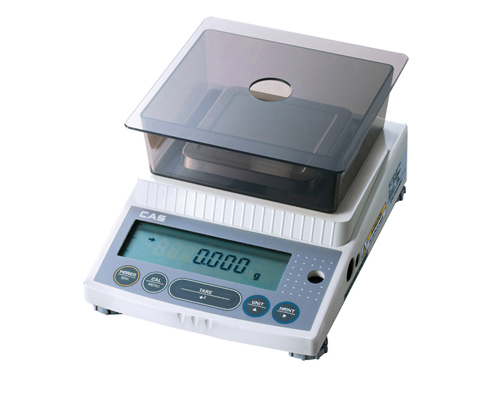

CAS CU Precision Balance CAS CU(X/W) top-loading balances are engineered with the innovative UniBloc mechanism which brings unrivaled quick response, excellent stability and durability at the same time. Powerful features support any imaginable weighing application. CU Series comes with motor-driven built-in calibration weight and fully-automatic calibration functions. Unit conversion - 22 different unit/modes including percentage, caret, specific gravity, lb & oz. RS-232C Interface for optional PC or printer.

Features

• Built-in clock GLP/GMP/ISO conformance
• Analog display mode
• Motor-driven calibration weight
• Fully-automatic calibration: PSC (CUW)
• Clock-calibration (CUW)
• LCD with backlight
• Windows direct function
• Unit conversion
• Counting function
• RS-232C Interface

Options

• Rechargeable battery pack

Specifications

CU SERIES
MODEL	MAX.CAPACITY (g)	READABILITY (mg)	PAN SIZE (mm)
CUW-H	220, 420, 620	0.001	108(W) x 105(D)
CUW-H	2200, 4200, 6200	0.01	170(W) x 180(D)
CUW-S	420, 820	0.01	108(W) x 105(D)
CUW-S	4200, 8200	0.1	170(W) x 180(D)
CUX-H	220, 420, 620	0.001	108(W) x 105(D)
CUX-H	2200, 4200, 6200	0.01	170(W) x 180(D)
CUX-S	420, 820	0.01	108(W) x 105(D)
CUX-S	4200, 8200	0.1	170(W) x 180(D)

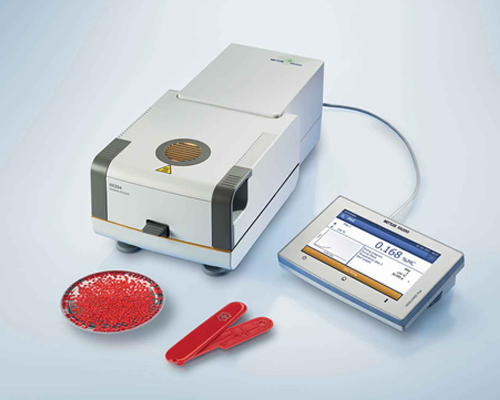

METTLER TOLEDO Professional Moisture Analyzers When moisture matters, METTLER TOLEDO Professional Moisture Analyzers deliver outstanding results. Designed and manufactured in Switzerland. Innovative heating and predictive result technology. Best in class.

PRODUCTS AND SPECS
PRODUCTS	MAXIMUM CAPACITY	READABILITY MC	DRYING PROGRAMS	METHOD MEMORY
HX204	200.0 g	0.0010 %; 0.01 %	4	300
HS153	150.0 g	0.01%	3	99

Quick Operation

An intuitive user interface and guided weighing minimizes training and speeds up the process. Shortcuts let you start drying methods directly from the home screen with just one click.

Quick Analysis

Advanced halogen technology is the key to fast heating and precise temperature control. The final result is released in record time.

Quick Cleaning

Flat surfaces are completely smooth and sealed. Spills are contained within the draft shield.

Secure Reporting

Instant A4 and Letter format printouts and PDF transfer ensure convenient and secure reporting.

Point of Use Calibration

Adjust and test at operating temperature to ensure the instrument is performing optimally under working conditions. Fully Automated Calibration Technology (FACT) adjusts and calibrates the balance using internal weights. Internal electronic level control ensures compliance with SOPs.

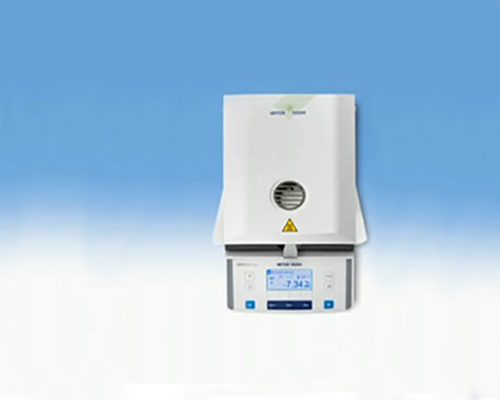

METTLER TOLEDO Advanced Moisture Analyzers The HB43-S Halogen Moisture Analyzer combines METTLER TOLEDO heating technology with analytical power in a compact and rugged instrument.

PRODUCTS	MAXIMUM CAPACITY	READABILITY MC	DRYING PROGRAMS	METHOD MEMORY
HB43-S	54.0 g	0.01%	Standard; LP16; Rapid	2
MJ33	35.0 g	0.01%	Standard	1

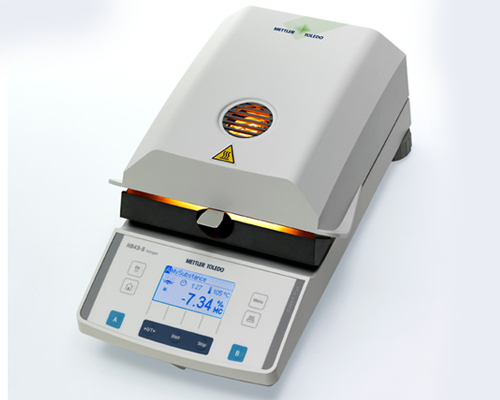

HB43-S Moisture Analyzer The workhorse for reliable quality control in the lab and on the factory floor.

PRODUCTS	MAXIMUM CAPACITY	READABILITY MC	DRYING PROGRAMS	METHOD MEMORY
HB43-S	54.0 g	0.01%	Standard; LP16; Rapid	2
MJ33	35.0 g	0.01%	Standard	1

Halogen Heating Technology

The halogen lamp of the HB43-S ensures quick, uniform sample heating for reproducible results within minutes - right from the first sample.

Direct Method Keys

Switch between two drying methods of the HB43-S at the click of one button. The method name is displayed in clear text.

Bright Display

The large, bright display of the Advanced Moisture Analyzers is easy to read and shows customizable method names ('MySubstance').

Rugged and Easy to Clean

The rugged design has proven itself consistently over time. If a sample is spilled, flat surfaces and excellent access to the sample chamber makes cleaning easy.

Get Started Immediately

More than 100 ready-to-use methods built-in the HB43-S simplify method development. Pick a method from the library and start measuring immediately. All of them correspond to official reference methods.

Fast Results

The HB43-S has a predefined rapid drying program for rapid testing.

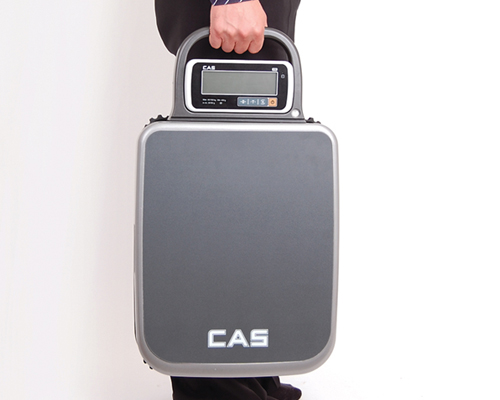

CAS PB Portable Bench Scale CAS PB Portable Bench Scale is designed for portable applications, easy to carry with it sturdy carry handle and extremely robust base. With its rechargeable battery the PB can be used continuously up to 300 hours. The PB can also be used with 4 x C size batteries. Additionally, this latest model is equipped with a large LCD display which is also detachable for easy viewing. Features an Auto Power-off, Auto Zero Tracking, Print Out and Hold function. Connect with a PC or ticket / label printer via RS-232C interface. This portable bench scale is perfect for delivery companies, farm products, dried fish, fruit & vegetables, hospitals, schools and fitness centers.

Features

• Portable design & large carry handle
• Detachable display with a White Backlight
• Rechargeable battery operated (300hrs continuous use with Alkaline battery)
• 4x C size battery operated
• RS-232C interface
• AC adapter
• Auto power off­ function
• Auto zero tracking
• Hold Function

MODEL	PB SERIES
Max.Capacity (kg)	30 60 150 200
Readability (g)	30 60 150 200
External Resolution	1/3,000 (dual) | 1/2,000(dual)
Display digit	6 digits
Display Symbols	STABLE, ZERO, TARE, g, kg, lb, oz, Low Battery
Display type	LCD with white backlight (134 x 48.6mm)
Keys	ZERO, TARE, HOLD, POWER
Operating temp.	-10°C ~ 40°C
Power	12V Adapter 1.5A, Recharge battery(Pb:6V, 1.3Ah, 20HR) or 4 x C Size Battery
Platter Size (mm)	355(W) x 443(D)
Dimensions (mm)	355(W) x 611(D) x 65(H)
Product weight (kg)	6

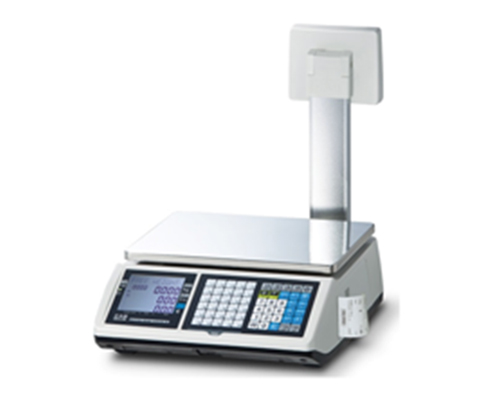

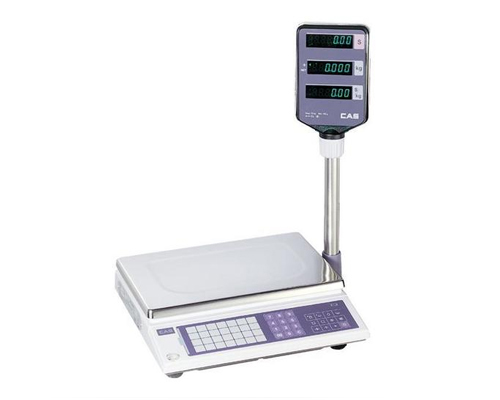

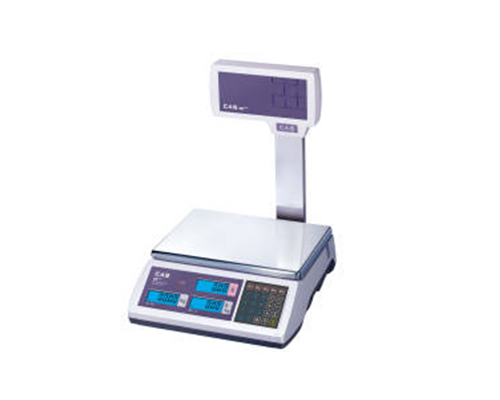

CAS AP-1 Price Computing Scale CAS AP-1 (EC version) Price Computing Scale can be interfaced with an Electronic Cash Register (ECR) or Point of Sale (POS) System. Total of 28 direct PLU's. Easy-to-use general weighing & weighing with Tare function. Ideal for smaller retail environments such as fish mongers, grocery and fruit/vegetable shops.

Features

• 28 Direct PLUs
• ECR or POS interface (RS-232C)
• VFD Pole Display
• Auto Span Adjustment
• Auto Zero Tracking
• Stainless Steel Platter
• Trade Approved

Options

• Large Platter (440 x 275mm)
• Scoop Platter (Bowl type for loose items)

MODEL	AP-1 (EC version)
Max.Capacity (kg)	15 30
Readability (g)	5 10
External Resolution	1/3,000
Display digit	5/6/6 (weight/unit price/total price)
Display type	VFD Pole Display
Operating temp.	-10°C ~ 40°C
Power	AC 240V, 50Hz / 60Hz
Platter size (mm)	340(W) x 220(D)
Dimensions (mm)	435(W) x 325(D) x 495(H)
Product Weight (kg)	6.5

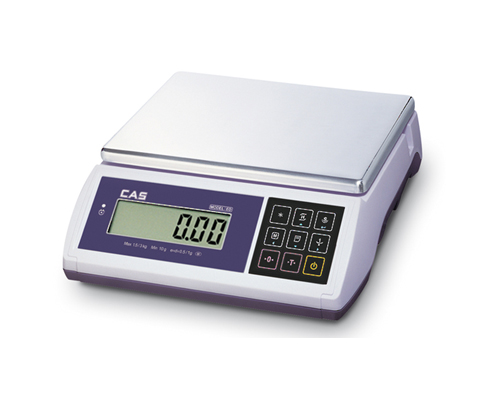

CAS ED Digital Weighing Scale CAS ED digital weighing scales are easy to use with 9 function keys. The ED also has a Counting Function, Percentage Mode, Cumulative Weight Sum Mode, Comparison Function and can be connected to a PC or printer (barcode label printing). AC & Rechargeable Battery operated. The CAS ED is ideal for use retail environments or simple day-to-day operations.

Features

• AC & Rechargeable Battery Operated
• Functions : On/Off, Zero, Tare, Hold, Weighing, Counting, Percentage, Limit/Comparison (HI/OK/LOW), Unit Conversion, Cumulative
• Zero, Net, Stable, Low Battery indicator
• RS-232C Interface (PC/Printer Connection)
• Barcode label printing
• Dual Range
• Large LCD display
• Double Platter (Stainless Steel & Plastic)
• Soft Large Rubber Tack Switch

Options

• Printer (DEP-50 Receipt, DLP-50 Label)

Specifications

MODEL	ED
Max.Capacity (kg)	3 6 15 30
Readability (g)	0.5/1 1/2 2/5 5/10
Internal Resolution	1/60,000
External Resolution	DUAL 1/3,000
Display Digit	6 Digit
Display Type	LCD
Operating Temp.	-10°C ~ 40°C
Power	DC 12V 1.25A Adapter, 6V 3.6AH Pb Battery
Battery Life	When charged for 12hrs: Approx. 200hrs
Platter Size (mm)	306(W) x 222(D)
Dimensions (mm)	330(W) x 346(D) x 107(H)
Product Weight (kg)	4.7

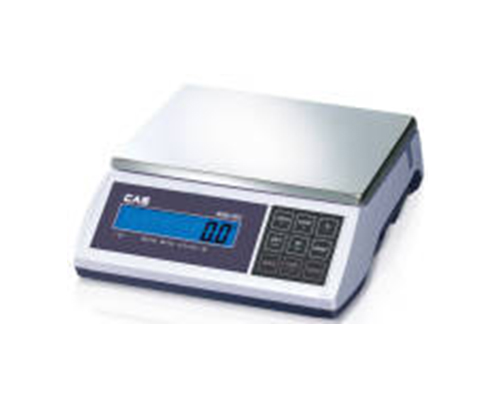

CAS ED-H Digital Weighing Scale CAS ED-H Digital Weighing Scale has a high resolution for extreme accuracy. The ED-H also has various functions such as, Counting, Percentage Mode, Cumulative Weight Sum, Comparison function and can be connected to a PC or Printer. AC & Rechargeable battery operated. This sophisticated machine is ideal for bakeries, labs, jewelry stores, or simple day-to-day operations where weighing in small increments is vital.

Features

• High Accuracy
• AC & Rechargeable Battery Operated
• Functions: On/Off, Zero, Tare, Hold, Weighing, Counting, Percentage, Limit/Comparison (HI/OK/LOW), Unit Conversion, Cumulative
• Zero, Net, Stable, Low Battery indicator
• RS-232C Interface (PC/Printer Connection)
• Large LCD display (blue backlight)
• Double Platter (Stainless Steel & Plastic)
• Soft Large Rubber Tack Switch
• Dust & Splash-proof cover

Options

• Printer (DEP-50 Receipt, DLP-50 Label)

Specifications

MODEL	ED-H Series
Max.Capacity (kg)	3 6 15 30
Readability (g)	0.1 0.2 0.5 1
External Resolution	1/3,000
Display Digit	6 Digit
Display Type	LCD (blue backlight)
Operating Temp.	0°C ~ 40°C
Power	Rechargeable Battery, AC Adapter (2V 800mA)
Battery Life	80hrs continuous use with 12hrs recharge time
Platter Size (mm)	306(W) x 222(D)
Dimensions (mm)	330(W) x 346(W) x 107(H)
Product Weight	4.5kg



CAS ER PLUS Price Computing Scale CAS ER PLUS Price Computing Scale can be connected to PC or Label Thermal Printer via optional RS-232C interface. Total of 199 PLU's, 5 direct & 194 indirect. Features a Daily Total function. Optional ER-Works software for PLU programming & label editing. AC & Rechargeable battery for easy portability. Ideal for smaller retail environments such as butchery, grocery and fruit/vegetable shops.

Features

• 199 PLU's, 5 direct & 194 indirect
• Zero, Tare, Daily Total, Auto Power-Off, Low Battery Indication
• Soft touch tact switch with silicon rubber keypad
• Dual interval for better accuracy
• LCD Display with Blue Backlight
• AC & Rechargeable battery operation
• Dust & Splash-proof protection cover

Options

• Printer (Label or Ticket)
• RS-232C interface (PC/Printer)
• Pole or non-pole type available
• Scoop Platter
• Label Rolls

Specifications

MODEL	ER Plus Series
Max.Capacity (kg)	3/6 6/15 15/30
Readability (g)	1/2 2/5 5/10
External Resolution	1/3,000 (Dual interval)
Display Digit	5/6/6 (weight/unit price/total price)
Display Type	LCD with Blue Backlight
Operating Temp.	-10°C ~ 40°C
Power	Rechargeable Battery, 12V DC Adapter
Battery Life	200hrs (LCD)
Platter Size (mm)	304(W) x 220(D)
Dimensions (mm)	Standard type: 330(W) x 346(D) x 107(H) Pole type: 330(W) x 384(D) x 419(H)
Product Weight (kg)	Standard type : 4.7 Pole type: 5.5

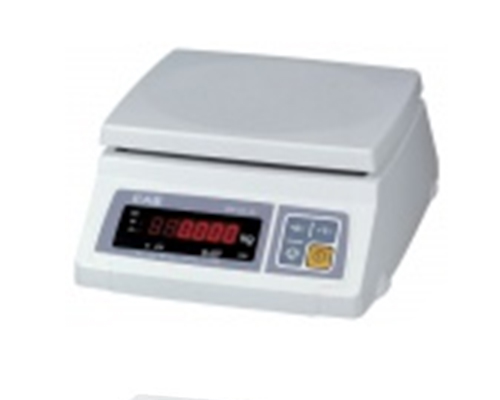

CAS SW- LR Digital Weighing Scale CAS SW Digital weighing and counting scale is suited for multipurpose environments. Battery operated and compact design for easy portability. The CAS SW has a simple counting and limit function for quality product management, great for use in manufacturing, parts shops, hardware stores etc.

Features

• Battery Operated & Compact Design
• Functions : On/Off, Zero, Tare, Comparator function (HI, OK, LOW), Counting Function, Unit Conversion, Auto Power-Off
• Zero, Net, Stable, Low Battery Indication
• Dual Range
• Rear Display
• Large LCD Display
• Plastic Platter
• Soft Touch Tack Switch
• Dust & Splash-proof Protection Cover

Options

• AC Adapter
• Stainless Steel Platter
• Stainless Steel Scoop Platter

Specifications

MODEL	SW-1
Max.Capacity (kg)	2 5 10 20 30
Readability (g)	0.5/1 1/2 2/5 5/10 10/20
Internal Resolution	1/60,000
External Resolution	1/2,000 ~ 1/3,000
Display Digit	5 Digit
Display Type	LCD
Operating Temp.	-10°C ~ 40°C
Power	Dry battery (6 x D) or 9V AC Adapter
Battery Life	Approx. 400hrs or 800hrs (Alkaline battery)
Platter Size (mm)	230(W) x 190(D)
Dimensions (mm)	260(W) x 287(D) x 137(H)
Product Weight (kg)	2.8



CT 100 SCALE CAS SW Digital weighing and counting scale is suited for multipurpose environments. Battery operated and compact design for easy portability. The CAS SW has a simple counting and limit function for quality product management, great for use in manufacturing, parts shops, hardware stores etc.

Features

• Known as Butchery / Super Market Scale
• Double Side Pole LCD Display with Back Light
• Thermal Printing, 32 Character per line.
• Stores upto 1799 PLUs
• Sales Reporting
• PC Software management & Data Downlaod
• Company Name & Image Up-loading
• Bar Code Setting
• Re-Chargeable Battery

Capacity	6 Kg	15 Kg	30 Kg
Readability	2g	5g	10g
Pan size	230mm x 300mm

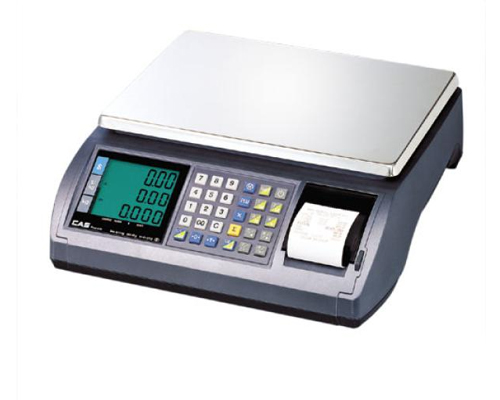

CAS POScale Price Computing Scale CAS POScale is equipped with a built-in thermal ticket printer and can store up to 1,800 PLU's. Supports up to 4 Sales Clerks making the scale ideal for retail environments such as butchery, supermarket, grocery and fruit/vegetable shop and supermarkets. Connect to a Cash draw with (RJ11) interface and manage your sales reports with the PC Software Management program.

Features

• 8 direct PLUs with 1799 indirect PLUs
• Up to 4 different sales clerk supported
• Detailed cash, sales clerk & item turnover reports
• PC software management
• AC & Rechargeable battery
• Thermal printing, 32 characters per line
• RS-232C Interface (PC connection)
• RJ11 Interface (Connect to Cash Draw)
• LCD Display

Options

• Pole & Non-Pole type available
• Ticket Rolls

MODEL	POSCALE
Max. Capacity (kg)	15 30
Readability (g)	5 10
Display digit	5/6/6 (weight/unit price/total price)
Display type	LCD
Printing speed	Dark 1 AC Power 50 mm/sec
Ticket size (mm)	58mm (width) / 65µm (thickness)
Operating temp.	-10°C ~ 40°C
Power	AC 220V, 50/60Hz Rechargeable battery (7.4V)
Platter size (mm)	250(W) x 332(D)
Dimensions (mm)	Standard type: 375(W) x 397(D) x 128(H) Pole type: 375(W) x 433(D) x 436(H)
Product Weight (kg)	Standard type: 6.8 Pole type: 8



Digi RM-40 Scale ECR / Receipt / label printer scale - a total solution for the mini market. LED Display. 1000 Item memory. Presets - 24 keys. Label printing function.

Interface : RS232C for PC or scanner; Cash drawer I/F.
AC or rechargeable battery option according to your needs.

Connection for cash drawer & scanner (as illustrated). Scales can be connected together for networked system. Free label design service for this unit i.e. we can put your logo in to the scale memory so that it prints on your labels.

Platform Size: 355mm x 224mm

Capacities Available (EC Trade Verified) :

3/6kg multirange (0-3kg x 1g /3Kg-6kg x 2g)
6/15kg multirange (0-6kg x 2g /6-15kg x 5g)

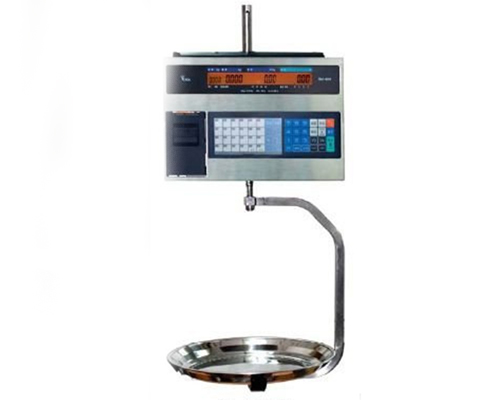

DIGI SM100 ECR / Receipt / label printer scale - a total solution for the mini market. LED Display. 1000 Item memory. Presets - 24 keys. Label printing function.

MODEL	POSCALE
Capacity	3/6kg	6/15kg
Multi Interval	e=1/2g	e=2/5g

Display

Operator Display

19-segment LCD with green backlight

Operation and General Specification

	SM-100B	SM-100P	SM-100H
Number of Preset Keys	40	40	76
Memory Capacity	1MB
Standard Interface	Cash Drawer, RS-232C, Ethernet

Labeling

Label Printing Size	Max W: 60 x L: 220 mm
Paper Width	Max 60mm
Printing Speed	80mm/sec for label, 105mm/sec for receipt

Options

• Memory Expansion Board (2MB)
• Wireless LAN (IEEE 802.11b)

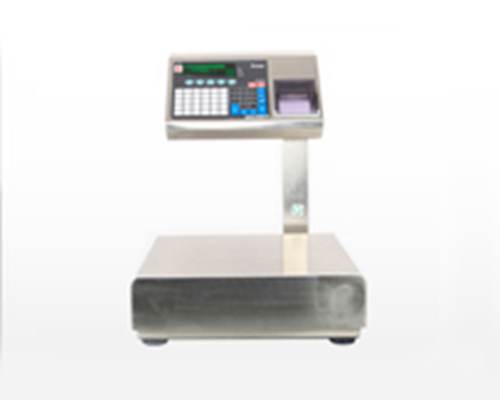

SI-810PR RECEIPT PRINTING New generation system scale solution for retail.

• Capacity 6kg - 31kg
• Fully SS-304 construction
• 3000 PLUs
• Wide option of reports available
• Optional ethernet
• Powerful application softwere RPR
• Links available for smooth IT integration in the back end
• Elevated console on printer for higher reliability in harsh environment
